LubricationCONTROL for Screening Machines

SCOPE OF SUPPLY

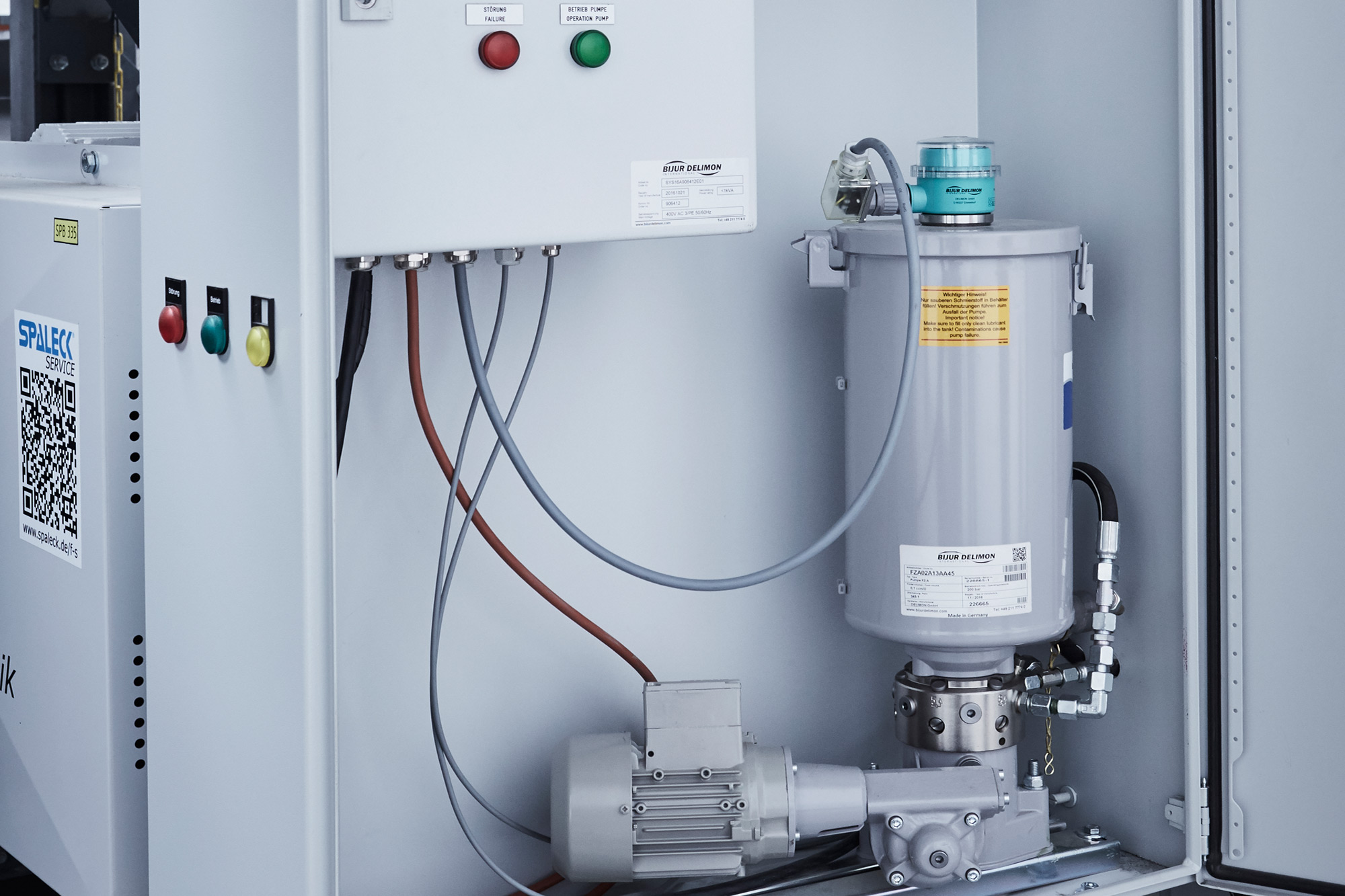

Fully automated progressive central lubrication unit
Efficient storage tank with a capacity of 8 liters
Electronic monitoring-unit for controlling the arrival of grease at the lubrication point sas well as for warning in the event of hose and line ruptures or in case, that there is air in the line

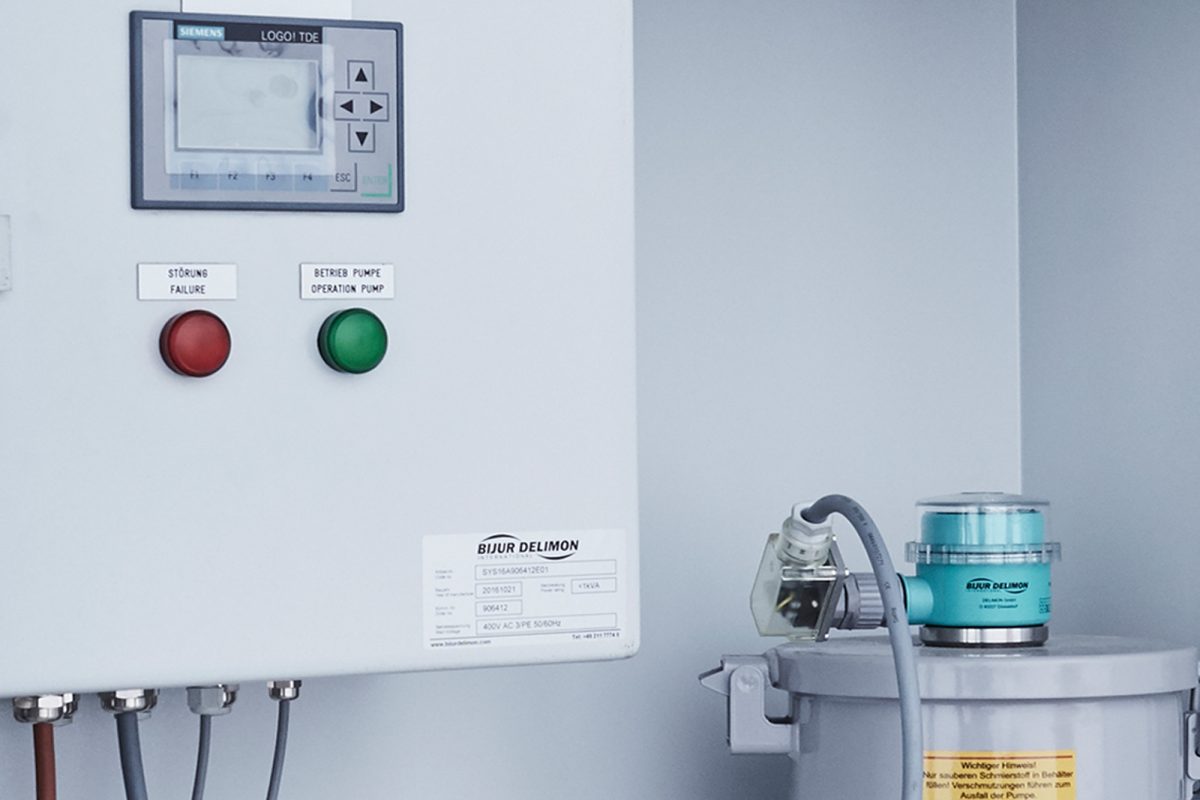

Switchboard with control-unit
Protective cabinet including heater

Optional signal output for
status display:

FAULT

REFILL

OPERATION

LubricationCONTROL
ADVANTAGES & BENEFITS

> Effectively protects against bearing damage from manual lubrication carried out incorrectly or not at all

>Extends the lifetime of the bearings due to a permanent and fully automated lubrication

>Protects against the ingress of foreign objects into the bearings (risk source number 1 for bearing damages)

>Reduces the risk of bearing damages and the costs for maintenance and servicing

> Guarantees the optimum amount of grease for every type of bearing and reduces the grease consumption in comparison to a manual lubrication at the same time
