Safety aggregates

Efficiently useable

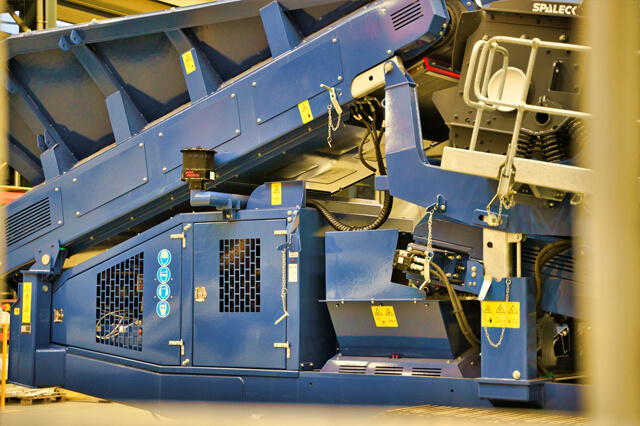

Power unit and hydraulics

The 20×5 T is equipped with a Caterpillar engine that boasts a constant speed of 168 kW at 2200 rpm. The hydraulic tank with a capacity of 650L (171US Gal) ensures a long running time of the machine.

Capazities

Maximum utilisation

The hopper of the 20×5 T has a capacity of max. 15m³ (19.6 yd3) and thus achieves a throughput of up to 600 tonnes per hour, depending on the material and screen deck.

Infeed hopper of the new SPALECK 205T
Screening Box of the new SPALECK 205T

Screenbox 20×5 T

Best screening results

  • Screen dimension upper deck – 6.100mm x 1.520mm (20′ x 5′)
  • Screen dimension lower deck – 5.900mm x 1.830 (19′ x 6′)
  • Drive system – direct with flexible coupling

20×5 T Conveyor

Efficient processing

  • Belt feed conveyor 1400mm (55”)
  • Collection conveyor 1400mm (48”)
  • Tail conveyor 3765mm (12′ – 4”)
  • Mid product side conveyor 5265mm (17′ – 3”)
  • Fine product side conveyor 5095mm (16′ – 9”)
SPALEKC Conveyor belt 205T
SPALECK guarantess safety work with your 205T

Safety features

Safe work guaranteed

The 20×5 T offers a wide range of safety features to prevent accidents and injuries. With systems for safety shutdown of the motor, full safety cover for nip points and horizontally lowerable side conveyor for maintenance, this mobile screening plant is CE compliant.

Options

Customised solutiuons

The 20×5 T can be adapted to your requirements. The screening plant can be supplemented, for example, with:

  • Wear resistant hopper lining
  • Extend hopper wing plats hydraulically folded
  • Magnetic separator on oversize conveyor
  • Plate apron feeder (replaces belt feeder)
SPALECK USA conveying and separation technology manufacturer

Contact us now for your personal offer and convince yourself of the SPALECK 20×5 T
