MOBILE AIR SEPARATION TECHNOLOGY

Air Classifiers from SPALECK

How a Wind Sifter Works

What is a wind sifter?

The separation of light and heavy materials using a stream of air is a proven recycling process. It is used to separate and process a wide variety of waste streams. The principle is based on a method that has long been used in grain harvesting. Air classification itself refers to the process of separating fine particles and is widely used in Sorting plants as well as in the recycling sector.

Comparison of Air Classifiers

Which air classifier is right for your application?

Drive

<span data-metadata="">Electric

Performance

15 kW

Length

6'7''

Width

6'4''

Height
s (transport)

5'

(Operating)

-

Weight

2019 lbs

Drive

<span data-metadata="">Electric

Performance

30 kW

Length

4'11''

Width

5'3''

Height
s (transport)

3'10''

(Operating)

-

Weight

1,213 lbs

Drive

<span data-metadata="">Electric

Performance

45 kW

Length

3'9''

Width

4'4''

Height
s (transport)

3'6''

(Operating)

-

Weight

908 lbs

Drive

<span data-metadata="">Diesel

Performance

Diesel

Length

7'2''

Width

5'7''

Height
s (transport)

5'1''

(Operating)

7'10''

Weight

3,550 lbs

Drive

<span data-metadata="">Diesel

Performance

<span data-metadata="">Diesel

Length

7'10''

Width

7'9''

Height
s (transport)

7'4''

(Operating)

11'3''

Weight

6,393 lbs

Advantages of Air Classifiers

Why combine air separators with SPALECK mobile screening machines?

Universal Conveyor Belt Attachments

Thanks to flexible belt connections and hose adapters, the Wind-shifters can be seamlessly integrated into various screening plants.

Portable & Compact

Thanks to its forklift pockets and compact design, the Wind-shifters are easy to transport and are perfect for use in a variety of locations.

Ready to use in just a few minutes

The SPALECK Wind-shifters are designed for quick setup and integration into your screening plants—ideal for flexible recycling operations in less than 10 minutes.

Integrated Control Panel

The built-in control panel ensures user-friendly operation and allows for precise adjustment of the airflow and suction power.

Quick and easy cleaning

Maintenance and cleaning are quick and easy, even during operation. This ensures maximum machine availability and minimal downtime.

Adjustable airflow and negative pressure

Easily adjust the speed, vacuum, and airflow to suit different materials and operating conditions—for extremely precise cutting.

TRY THE WIND SIEVE NOW!

Test our air classifiers during an on-site demonstration using your own material right at your facility.

Smart features. Real results.

Technology that convinces

Principle of Airflow Mixing

Using a powerful airflow, the Wind-shifters separate light materials from heavy ones based on their density and particle size.

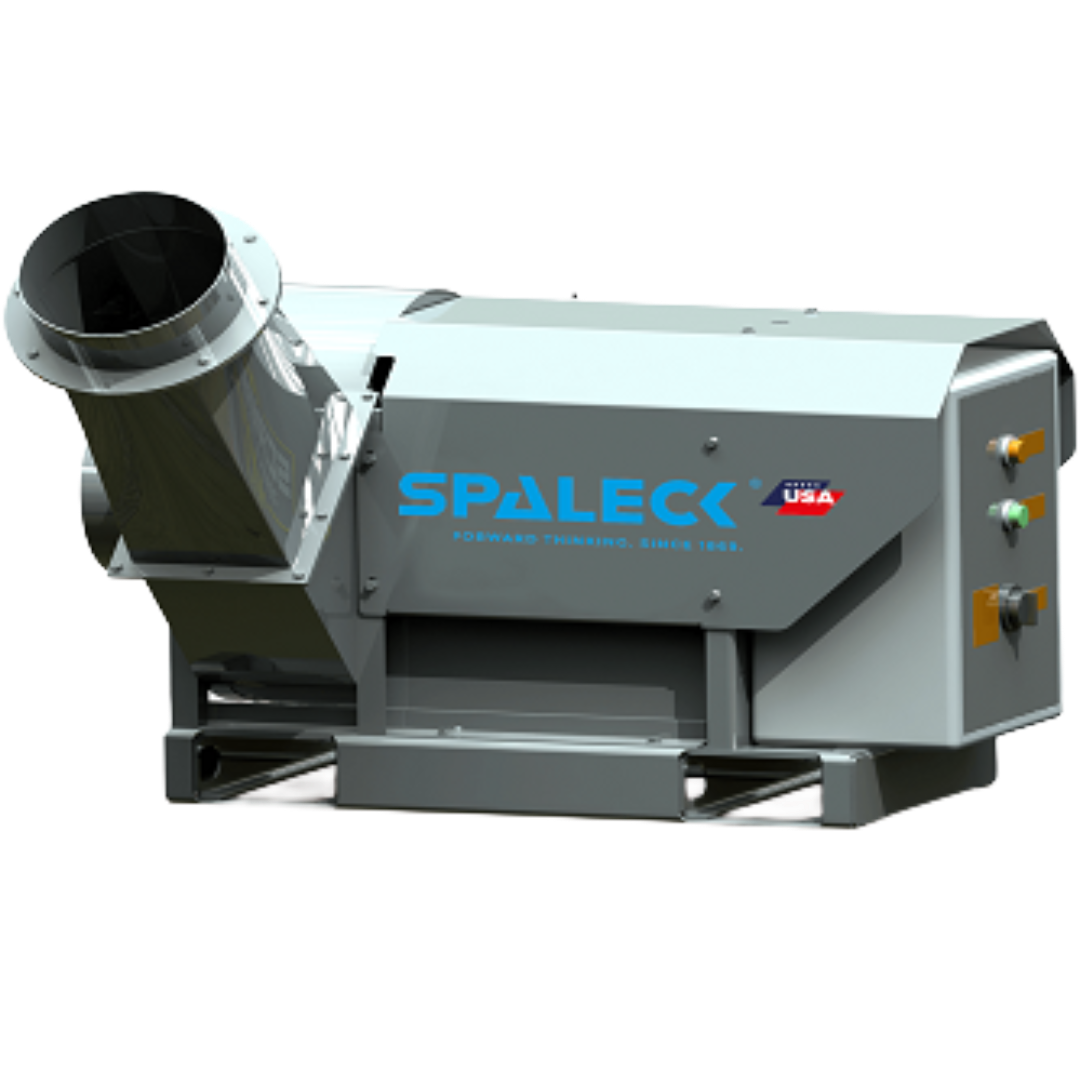

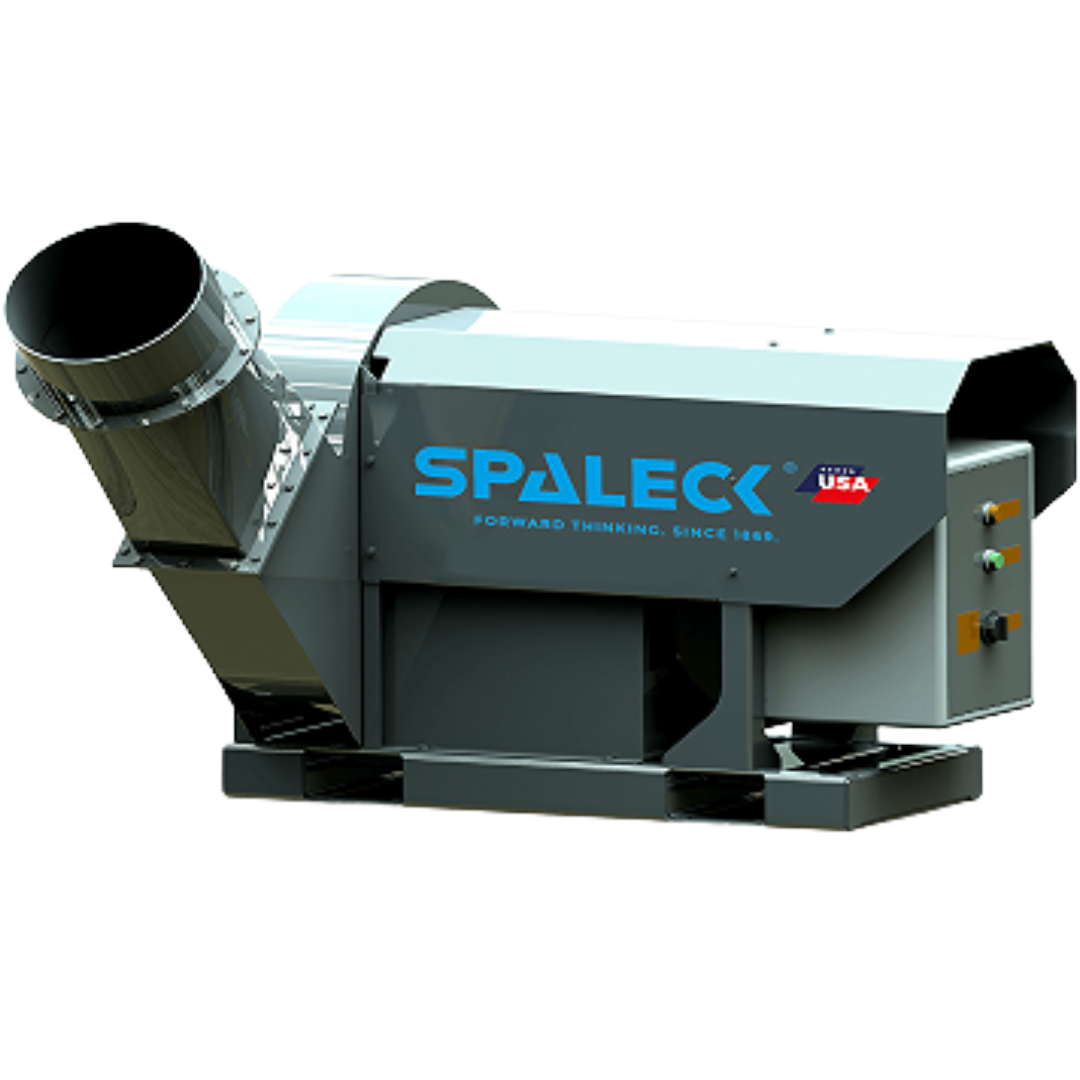

Compact ExtractVac Series

Models such as the AV9 1600E and the AV4 1200E feature a compact design, electric or hydraulic drives, and easy integration.

Separating Drum

The integrated drum ensures precise separation: Light fractions are blown out, while heavier ones remain behind.

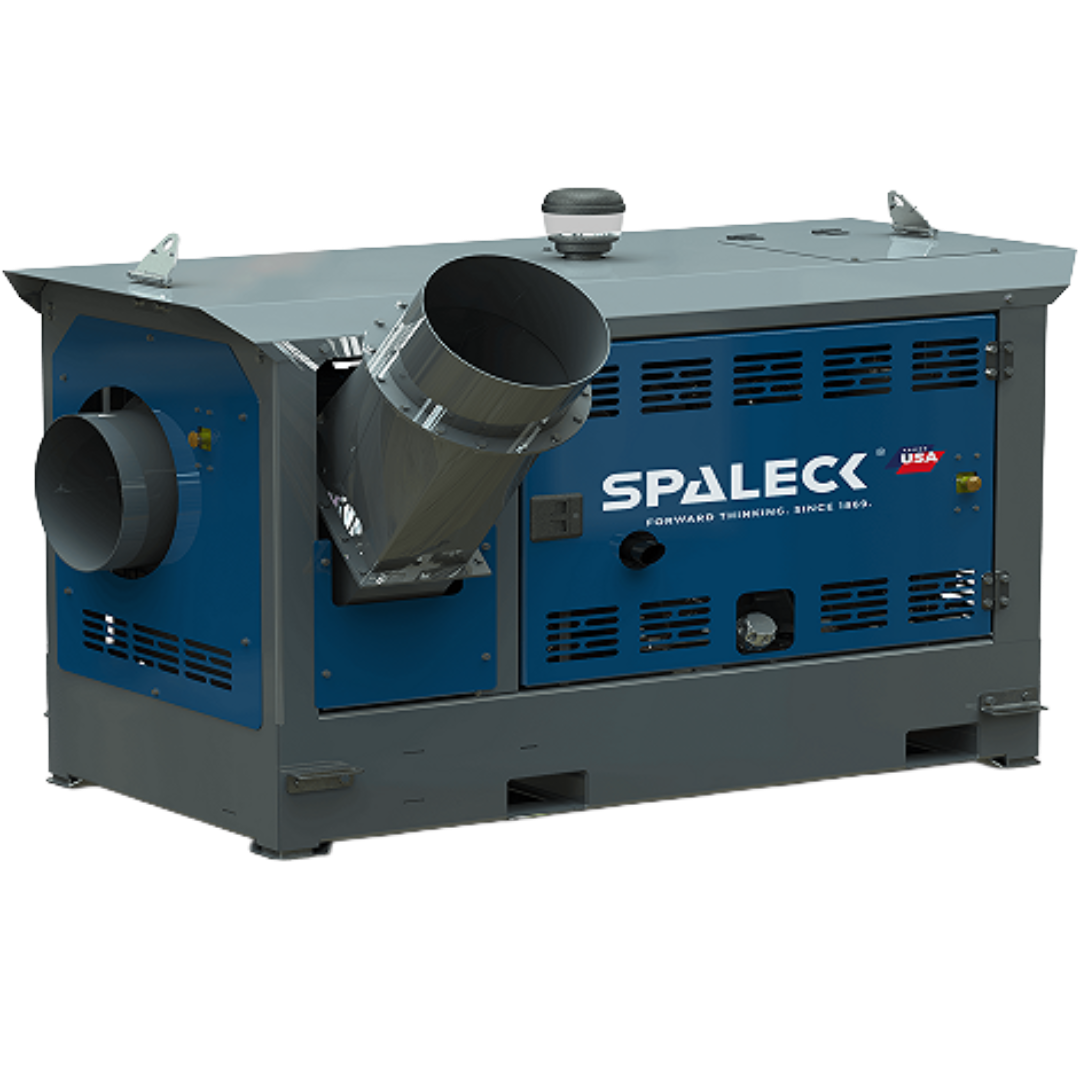

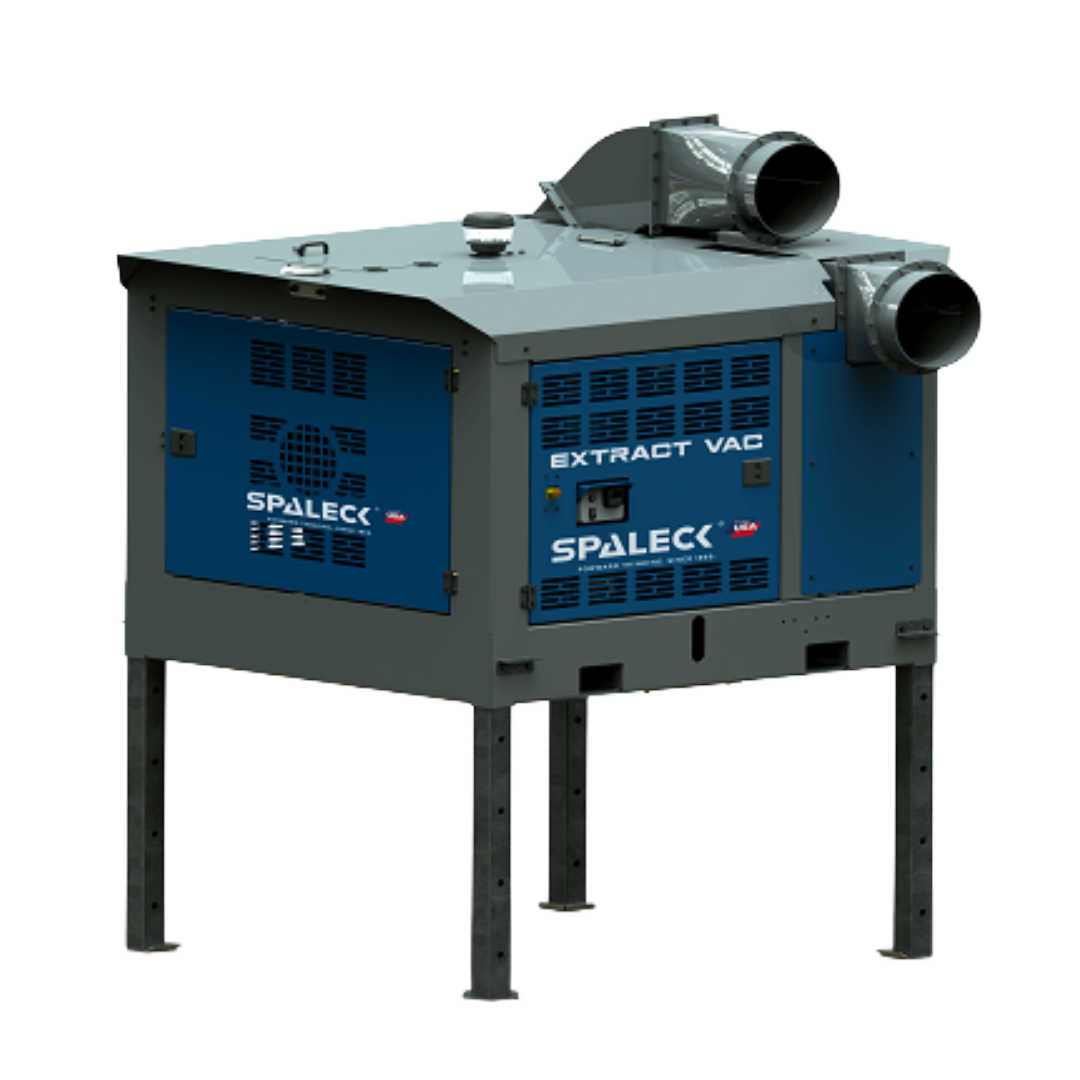

High-Performance Diesel Engines

The air separators offer powerful diesel engines, an adjustable airflow of up to 112 m³/min, and maximum mobility.

Your Experts in Air Classifiers

Let’s connect

Let’s connect

Let’s connect

Let’s connect

Let’s connect

Let’s connect

Let’s connect

Everything you need to know

FAQs

Do you have questions about our screening solutions? You’ll find the answers here!

Are there different models of windsifters?

Yes – SPALECK offers both electric and hydraulic compact models (ExtractVac) as well as powerful diesel units with two suction options.

Which materials can be processed with an air classifier?

Typical applications include Biomass, Compost, wood fractions, plastics, construction waste, C&D waste and recyclable household waste.

Why should I use an air classifier with mobile screening machines?

It increases separation efficiency, reduces contamination and can be seamlessly integrated into SPALECK’s screening plants for maximum flexibility.
